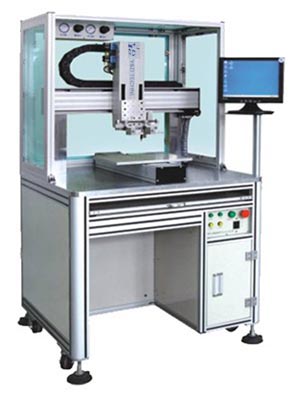

Floor-standing traditional automatic dispenser

1.Operation interface of WINDOWS 2000 which is easy to learn
2.Functions of drawing points,lines,surface,circle,consecutive complement of curves and 3-axis linkage.
3.80G disk storage with super momory capacity,and software has to the functions of regional array and parallel operation.
4.The size of glue,speed of glue spread,dispensing time,time of halting dispensing can be arranged by parameter.with this method,glue exudation is quite stable with no glue leaking and dripping.
5.It can be import AUTO CAD which simplifies operation with high precision.
6.CCD assisted process programming and instructing function enables real time tracking of location of coordinate orbit to be displayed so as to shorten the programming time and improve programming efficiency.
7.Optional double working platform can be choosen to save time of placing and picking up workpiece or automatic feeding of materials so as to be promote effeciciencyand competitive advantage of enterprises..
8.Simutaneous operation is possible by choosing the optional fine adustment packer rubber fixture to improve working effeciency.
9.Optional 300CC large packer rubber or pressure barrel stored with glue can be chosen for operation to reduce time of change glue.
10.Intelligent disruption of glue to prevent dragging tlue,which saves much glue and reduces process of glue amendment.
11.Control resolution of glue exudation is 1ms.
12.Continuous operation of single-disc and multi-fixture can be conducted to improve efficiency.
13.Exclusive high-speed rotating valve of YD company makes dispensing control at the beginning and the end of more precise.
14.It is applied to fluid dispensing,such as UV glue,AB glue,Epoxy(Black glue),white glue,EMI conductive glue,silicon,epxoy resin,instant glue,silver glue,red glue,paste,thermal grease,welding control paste,transparent painet,screw fixative and so on.
15.Applicable object:mobile phones,computer case,CD-ROM driver,printer,ink folder,PC board,LCD,LED,DVD,digital camera,switches,connectors,relays,radiators,semiconductors and other fluid dispensing products like repid dispensing connect with SMT facility,clocks,toys and medical apparatus.

Free parts:
Name Unit Quantity Remarks
motor Kit 3 Stepping motor(360AD) / AC Servo(400AD/500AD)
Lead screw and guide rail Kit 3
CCD Image system Kit 1
Computer Kit 1 80G disk、512 memory、2.7CPU
Monitor Set 1 15" LCD
Movement controller Kit 1
Dispenser robot Kit 1
Micro-regulating packer rubber fixture Kit 1 XYZ axis Three dimension adjustable
Model Y&D-400D Y&D-500D
Working range 400(X) X 400(Y) X 80(Z)mm 500(X) X 500(Y) X 80(Z)mm
Maximum speed 500mm/sec
Resolution 0.001mm
Repletion precision ± 0.025mm
Operation system WINDOWS2000
Transmission model servo motor / ball screw
power supply AC220V50-60HZ 1.5KW
Size 950 X 950 X 1600mm 1200 X 1100 X 1600mm
Weight 450KG 550KG
Working environment Moisture 20-90%,Temperature 0-40 ℃
