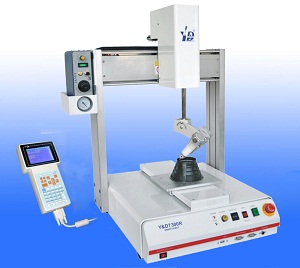

| 4 Axis robot |
Reference
| Model |
Y&D7300-R |
Y&D7400-R |
Y&D7500-R |
|
Working range( X/Y/Z mm/R) |
300/300/100/360° |
400/400/100/360° |
500/500/150/360° |
| Load Y-AXIS / Z-AXIS |
10kg/2kg |
10kg/2kg |
| Speed X&Y / Z (mm/sec) |
0.1-500/250 |
0.1-800/500 |
| Resolution |
0.02mm/Axis |
| Repetitive Positioning Accuracy |
±0.02mm/Axis |
| Program Capacity |
Min 100 Group、4000 points/group |
| Data Storage Type |
CF Card |
| Program Display |
LCD |
| Motor System |
Micro-stepping motor |
| Control Method |
PTP&CP |
| Interpolation Function |
4Axis |
| Programming Method |
Teach pendant / Keyboard |
| I/O Signals Port |
8Inputs/8 Outputs |
| External Control Interface |
RS232 |
| Power Supply |
AC110V~220V/300W |
| Working Temperature |
10°-40°C |
| Working Relative Humidity |
20~90% No condensation |
| Dimensions (WxDxH mm) |
485*500*745 |
585*610*745 |
685*700*795 |
| Net Weight (kg) |
35kg |
42kg |
53kg | |
|
|
|
|
