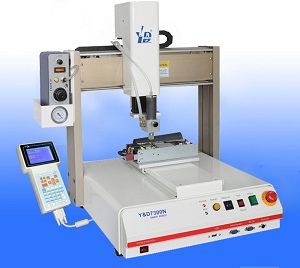

| Y&D7300N dispenser robots |
Models:Y&D7300N
Working Range X/Y/Z(mm) : 300/300/100
Load Y-AXIS/Z-AXIS : 10 kg/5 kg
Speed X&Y/Z (mm/sec) : 0.1-800/500
Resolution : 0.01 mm/Axis
Repetitive Positioning Accuracy : +/- 0.01 mm/ Axis
Program Capacity : Min 100 Group、4000 points/group
Data Storage Type : CF Card
Program Display : Teach Pendant LCD
Motor System : 3 Phase Micro-stepping motor
Control Method : PTP & CP
Interpolation Function : 3 axis (suit for 3D requirement)
Programming Method : Teach pendant/Keyboard
I/O Signals Port : 8 Inputs/8 Outputs
External Control Interface : RS232
Power Supply : AC 110 ~ 220V 300W
Working Temperature : 10 - 40 C
Working Relative Humidity : 20 - 90% no condensation
Dimensions (WxDxH mm) : 485 x 505 x 610
Net Weight (kg) : 32 kg |
|
|
|
|
